Continuous Inkjet (CIJ) printers are widely used for fast and reliable industrial printing. They are suitable for printing batch numbers, expiry dates, barcodes and other variable information on different surfaces such as plastic, glass, metal and paper. CIJ printers are designed for continuous operation and consistent print quality in demanding production environments.
Printing Parameters:
| Print Head Duct | 3m/6m |
| Nozzle Specifications | 40, 50, 60, 75 |
| Printing Height | 2-20 mm |
| Printing Distance | 2-30 mm |
| Printing Lines | 1-5 lines |
| Printing Speed | 384 m/min |
| Counter | More than 20 independent counters |
| Ink Color | Black, Red, Blue, Green, White, Invisible |
| Ink Type | High adhesion, Migration resistance, High temperature resistance, Special for glass, Permeability, Food grade, Oil resistance |
| Font | 5X6L, 7X6L, 6X10L, 9X8L, 9X11L, 11X11L, 16X16L, 24X24L, 32X32L |
| Printing Material | Carton, Plastic, Metal, Boardings, Pipe, Stone, Cable Glass, Electronic components, Auto parts, Industrial chemical packaging, Medical/Food/Gift box |
| Print Content | Text, Time, Date (Julian Year), Logo, Shift, SN, Dynamic Barcode/QR Code, Dynamic Serial Data, Dynamic Database |
Machine Parameters:
| Operating System | Embedded Linux security operating system |
| Display Screen | 10.1-inch color display, industrial touch screen |
| Communication Interface | Network port, USB, RS232 |
| Protection Level | IP55 |
| Power Parameters | Input 100-240V AC |
| Rated Power | 150W |
| Memory | 256MB |
| Machine Material | 304 stainless steel |
| Machine Dimensions | 400mm x 250mm x 550mm (Length x Width x Height) |
| Working Environment | Temperature: 0-45°C, Humidity: 30%-70% RH |
| Related Certification | RoHS CE BIS |
| Net Weight | 22 kg |
| Main Hardware | American TI AM 3358 industrial grade CPU, American Xilinx Spartan-6 industrial grade FPGA |
| External Interface | Optical sensor, Encoder, Reverse and upside down control, Signal light alarm output, Serial number output control, External printing information selection |
| Support Language | Supports more than 40 languages (Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Japanese, Spanish, Italian, etc.) |
Key Features
High-speed printing suitable for continuous production lines
-
Prints on multiple surfaces like plastic, glass, metal, and paper
-
Clear and consistent printing of text, numbers, date,s and codes
-
Non-contact printing for uneven or curved surfaces
-
Supports continuous operation with minimal downtime
-
Compact design for easy integration into existing lines
-
Reliable performance in demanding industrial environments
Consumables

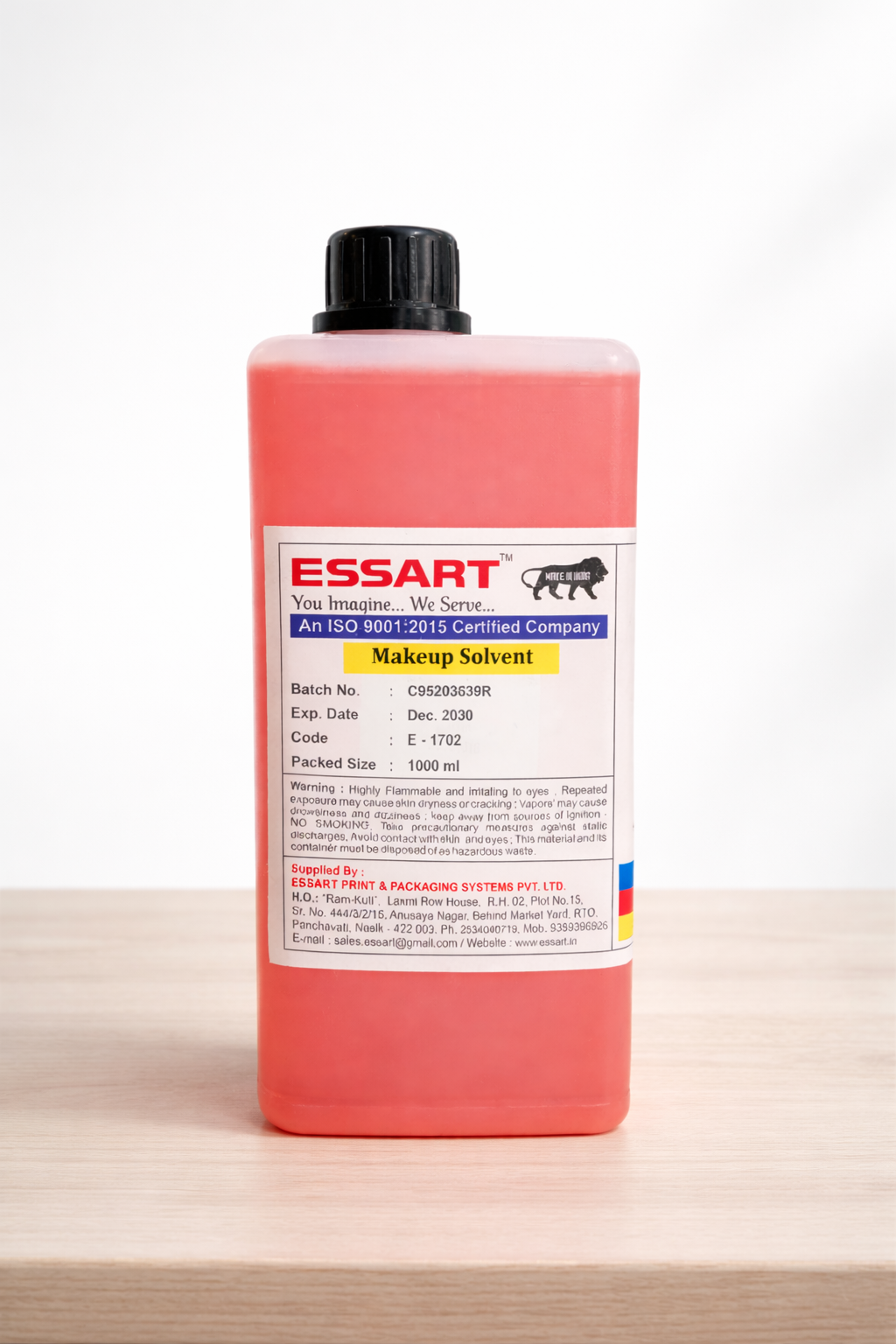

Makeup solvent

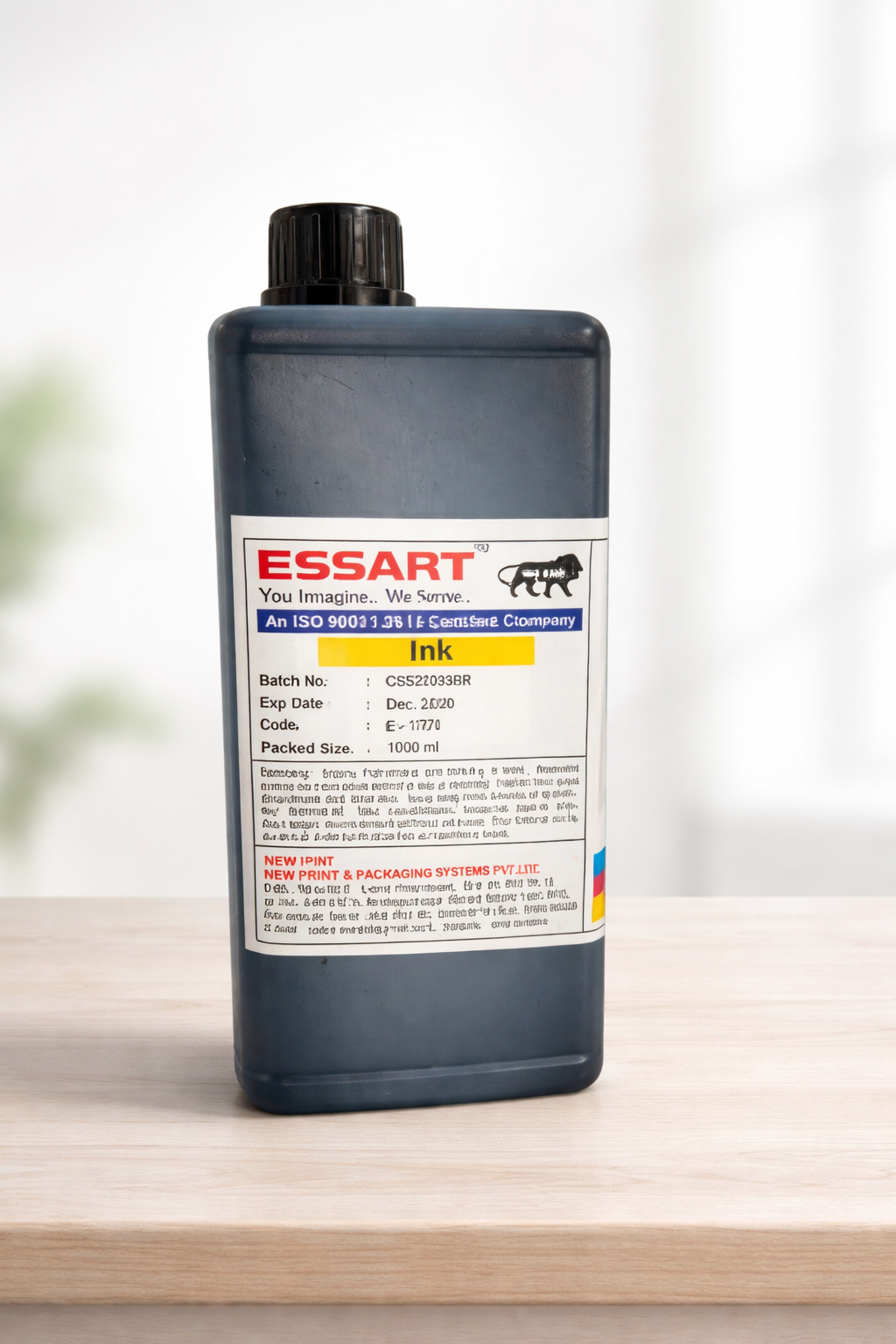

Ink

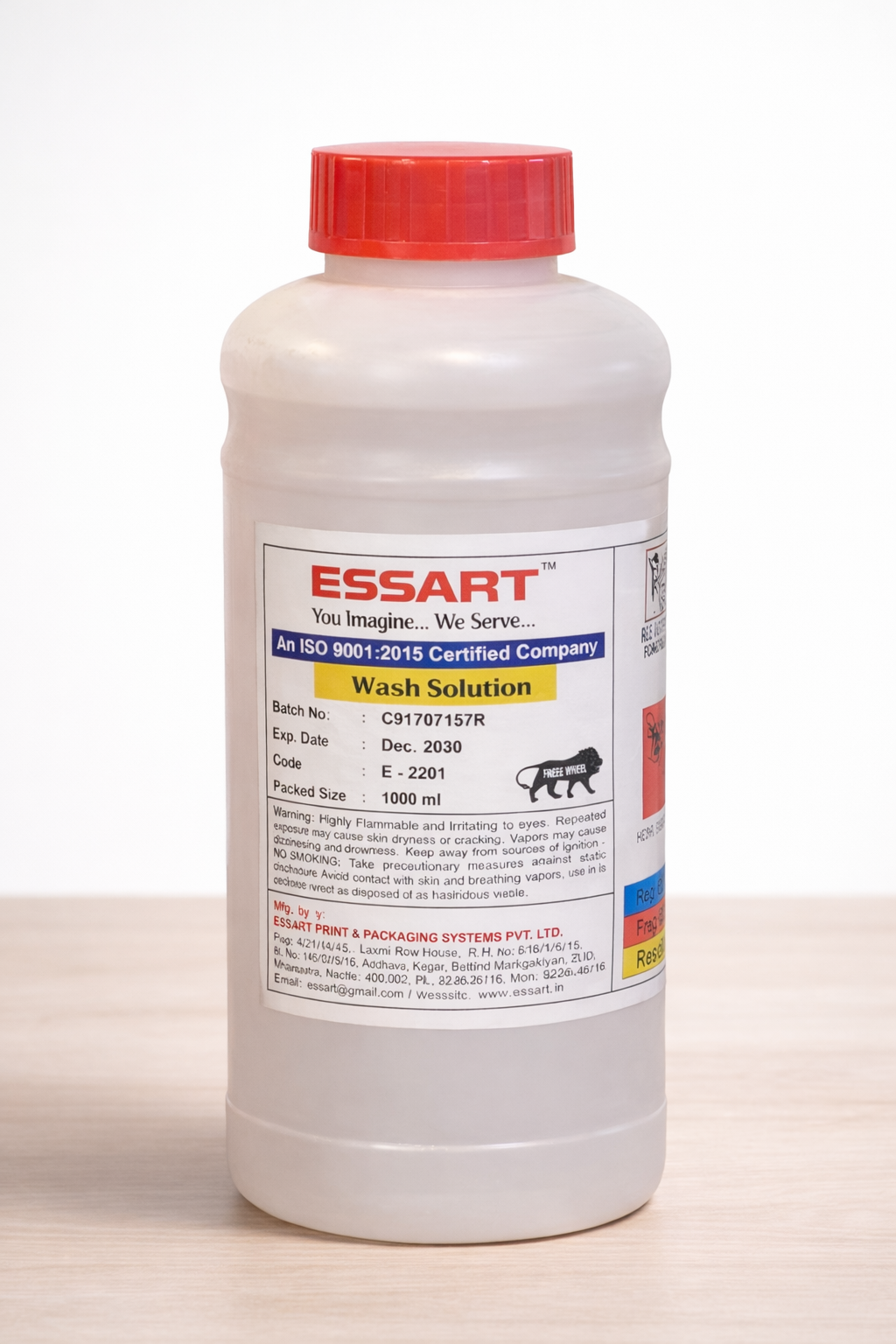

Wash
