The TTO (Thermal Transfer Overprint) thermal transfer printer utilizes a heated thermal transfer printhead to peel off the ribbon at a special pressing angle, transferring the ink from the ribbon substrate onto the surface of the object, such as flexible films or labels. The TTO printer can be used in conjunction with packaging machines for packaging film products.
The R4000 series printing speed reaches up to 800mm/s, with the minimum printing spacing adjustable to 0.1mm. Additionally, the ribbon supports lengths of up to 600m, featuring a ribbon-saving mode that effectively reduces the frequency of ribbon replacement.
The printer is equipped with a 10.1-inch full-color LCD touch screen for ease of operation. The hardware configuration consists of a self-developed PCBA motherboard, coupled with an industrial-grade high-performance CPU and high-speed computing FPGA. The body of the printer is constructed using aviation-grade aluminum, making it both sturdy and durable.
Specification
| Air Supply & Air Consumption | 2-4 bar / 29-58 psi |
| Operating Mode | Intermittent Printing / Continuous Printing |
| Print Mode | Thermal Transfer Overprint |
| Weight | Coding Machine: 7.8 kg, Controller: 3.0 kg |
| Ribbon Width | 24 / 33 / 35 / 55 mm |
| Ribbon Length | 400 / 600 m |
| Print Area | Intermittent: 32x75mm / 53x70mm Continuous: 32x200mm / 53x200mm |
| Maximum Print Speed | 800 mm/s |
| Printing Gap | ≥ 0.1 mm |
| Printing Resolution | 300 dpi |
| Material Types | High barrier film, stick packaging, sealed bag, sealed packaging, bagged, metallized label, decorative label |
| Models | 7200 |
| Power Supply | AC 110-230V 50 / 60 Hz |
| Working Environment | Temperature: 0-45°C, Humidity: 30-70% Rh |
| Dimensions (Coding Machine) | 216.7 x 203.7 x 178.9 mm |
| Dimensions (Controller) | 324 x 312.7 x 65 mm |
| Operation Interface | 10.1-inch full-color LCD touch screen |
| Standard Communication | USB, RS232, TCP/IP Network Interface Supports remote centralized control management for network operations, including integration with docking systems, weighing machines, conveyors, paging machines, packaging machines, enterprise resource planning databases, and drug supervision codes. |
| Print Content | Language Characters / GS1 Supports Data Matrix, Dynamic QR Code, barcodes, graphics, serial numbers, dates, shifts, counters, variable databases, and serial real-time dynamic data printing (multi-information group printing). |
Key Features
- Ultimate Efficiency: Printing speed up to 800 mm/s.
- Easy to Use: Simple operator interface. Withstands various harsh environments. Good quality and fewer problems can extend the production time.
- Compact Design: Compact body can be integrated into existing products on production lines. First choice for equipment manufacturers and system integrators.
- Easy to Operate: 10.1-inch full-color LCD touch screen, large-screen operation, preview support. Operator errors can be reduced. Simple ribbon box design, easy replacement of ribbons, automatic identification and adjustment for quick work.
- High-End Manufacturing: Aerospace-grade aluminum, CNC molding process, industrial-grade stainless steel, rugged and durable.
- Professional Hardware: Self-developed PCB, industrial-grade high-performance CPU, industrial-grade high-speed computing FPGA. Supports electronic components, and SMT assembly processes.

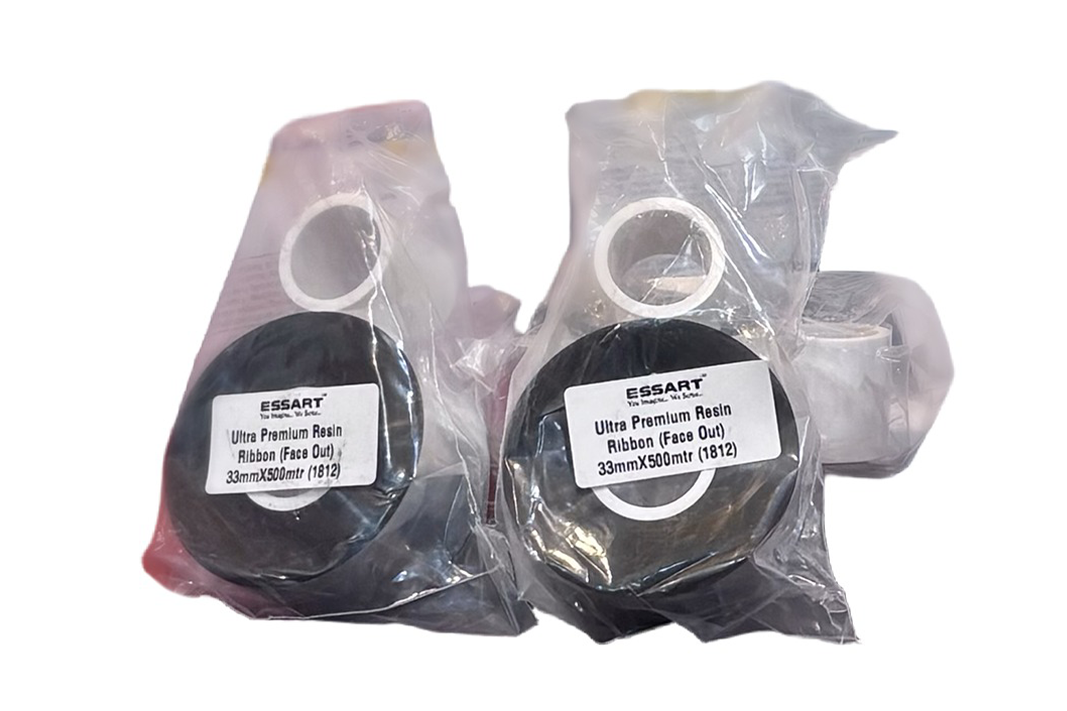

Consumables
